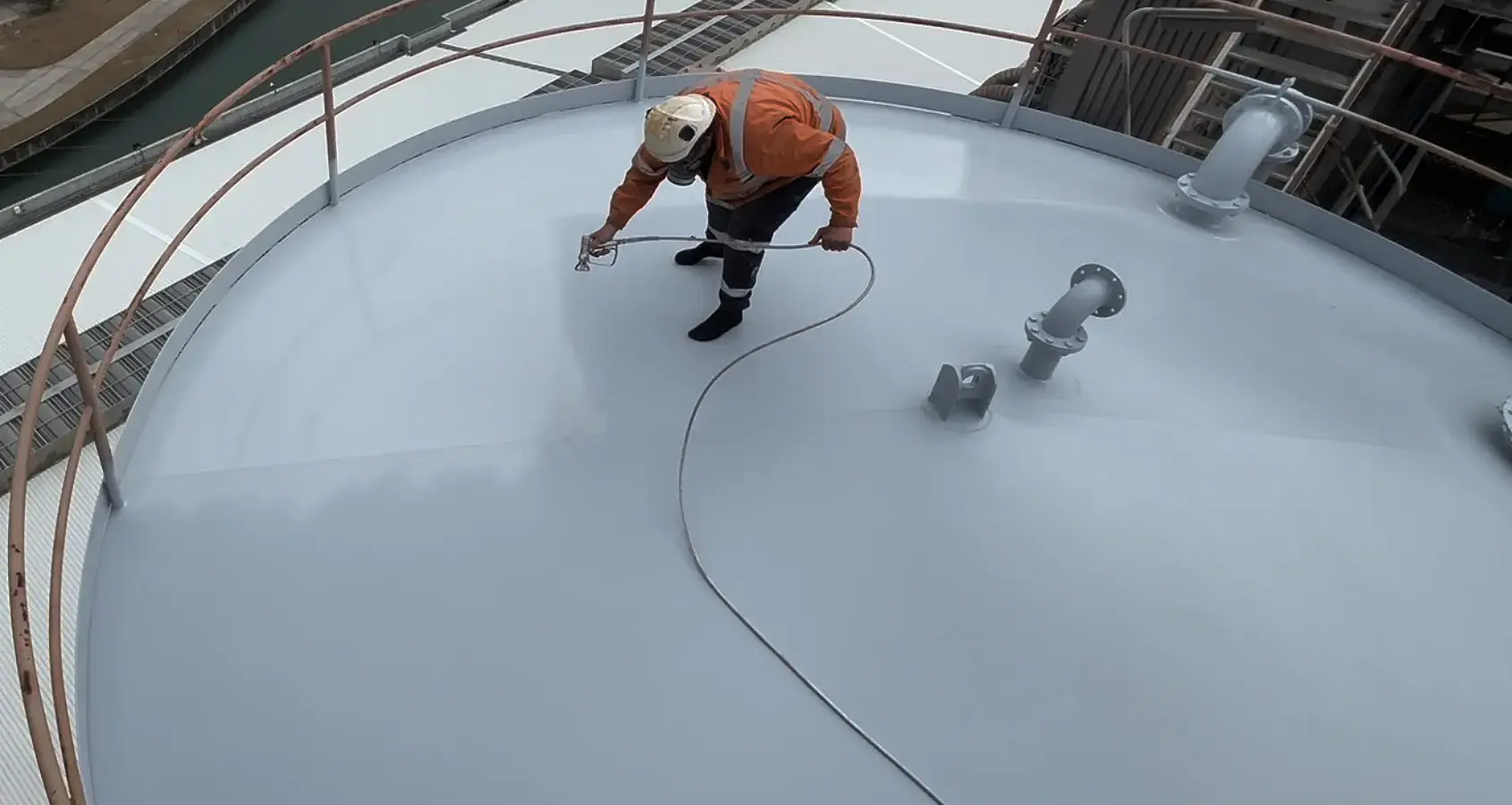

R230 TopCoat applied to the roof of a large storage tank
TOPCOAT

NanoPrep — R230 TopCoat

Mid-gloss water-based industrial topcoat — the approved finishing system for NanoPrep, providing long-term UV and corrosion protection.

UV Stable Waterbased Single Pack Mid Gloss Approved Topcoat for NanoPrep
R230 TopCoat logo

A water-based topcoat, purpose-built for NanoPrep

ReziSafe R230 TopCoat is a mid-gloss, single-pack, self cross-linking industrial waterbased topcoat that offers excellent surface protection. It has been developed as an ideal topcoat for NanoPrep, the rust primer capable of successfully priming damp rusty surfaces, galvanised steel, aluminium, or stainless steel with minimum surface preparation. At a power station, a water tank was coated with NanoPrep and R230 TopCoat, giving the tank and its supporting steelwork long-term protection against corrosion and UV.

Approved Topcoat for NanoPrep: R230 is specifically formulated to perform as the finishing layer over NanoPrep — combining easy application with long-term UV-stable, corrosion-resistant performance.

R230 provides strong UV protection, making it suitable for protecting coated assets against external weathering and environmental elements over the long term. R230 TopCoat was applied by airless spray to a water tank on a food production farm, giving it lasting UV protection.

Key benefits

UV Protection

Provides strong resistance to UV degradation, protecting coated assets exposed to external weathering.

Mid-Gloss Finish

A clean, professional mid-gloss finish suitable for a wide range of industrial applications.

Single Pack Formula

Self cross-linking — no complex mixing ratios, simple and straightforward to use on site.

Minimal Surface Prep

Can be applied over damp, rusty, galvanised, aluminium, or stainless steel surfaces.

Surface preparation

Metals, bare rusty steel, galvanised steel, aluminium and stainless steel should be prepared and coated with NanoPrep as per its specification (refer to TDS and application sheets). For prepainted surfaces, simply remove any grease, oil, dust or dirt before application.

Application

Thoroughly stir paint and contents before and during use with a wide flat stirrer. Avoid application or drying in excessive hot conditions or temperatures below 10°C. For best results, always apply two coats.

1

Brushing / Rolling

For small areas, use R230 as is. For larger areas, thin with water by approximately 10–15% (100–150mL per litre).

2

Spray — Conventional or Airless

Thin with water by approximately 10–15% (100–150mL per litre). With smaller tip guns, further thinning could be required.

3

Protection

Use effective ground or drop sheets to protect the surrounding area from overspray or spillage.

Drying, coverage & clean up

Drying Times

Under normal conditions: touch dry in 30 minutes; recoat after 2 hours.

Coverage

8–12 square metres per litre, depending on porosity and roughness of the surface. Allow extra when spraying, as certain structures and shapes can cause significant loss due to overspray.

Clean Up

Wash with cool water and clean all application equipment and utensils immediately after use. R230 is a tough, resistant coating once dry and will be difficult to remove if left to cure on equipment.

Technical documentation

Detailed specifications, application guides, and safety information are available below.

Pairing R230 with NanoPrep

See how NanoPrep and R230 TopCoat work together to deliver long-term corrosion and UV protection — without abrasive blasting.

View NanoPrep Rust Primer

Frequently Asked Questions

What is R230 TopCoat?

R230 TopCoat is a mid-gloss, single-pack, self-cross-linking, water-based industrial topcoat. It was developed as the ideal topcoat for NanoPrep rust primer and gives UV protection, so it is suitable for steel assets exposed to the weather. Two coats are recommended for best results.

How long after NanoPrep can I apply R230?

R230 is water based, so it can be applied over NanoPrep after about 2 to 3 hours at 20 degrees C. Allow longer in cool or humid conditions. The NanoPrep coat should be dry to touch and even in colour before you apply R230.

How much does R230 TopCoat cover?

One litre of R230 covers 8 to 12 square metres, depending on how porous and rough the surface is. Allow extra when spraying, as some structures and shapes can cause significant loss through overspray.

What are the drying and recoat times for R230?

Under normal conditions, R230 is touch dry in 30 minutes and can be recoated after 2 hours. Apply two coats for best results. Clean equipment with cool water straight after use.

Can I use a different topcoat over NanoPrep?

Yes. NanoPrep is compatible with acrylic coatings, water-based steel protection paints, two-pack epoxies, polyurea coatings and coatings containing no more than 16% solvent. It is not suitable under solvent-based or silicone-based paints. Two-pack topcoats need at least 12 hours over NanoPrep. R230 is the recommended topcoat because it was developed for use with NanoPrep.
