External Coating of Ash Hopper
NanoPrep provides surface preparation without blasting
Download Case StudyThe Problem
A coal-fired power station experienced an issue with the existing coating on an ash hopper degrading over years in service. This degradation had exposed the underlying steel, leading to accelerated external corrosion on the ash hopper’s casing.
To address this, the customer required a new external coating to protect the ash hopper from further corrosion. Abrasive blasting was not an option for surface preparation due to the close proximity of other workers and the customer requiring a fast turnaround in order to complete the work during a major shutdown period.
The Application
NanoPrep was recommended as an alternative form of surface preparation since it did not require abrasive blasting or removal of the existing paint system that was still in good condition. The application was completed by the Rezitech Services onsite team.
NanoPrep Application

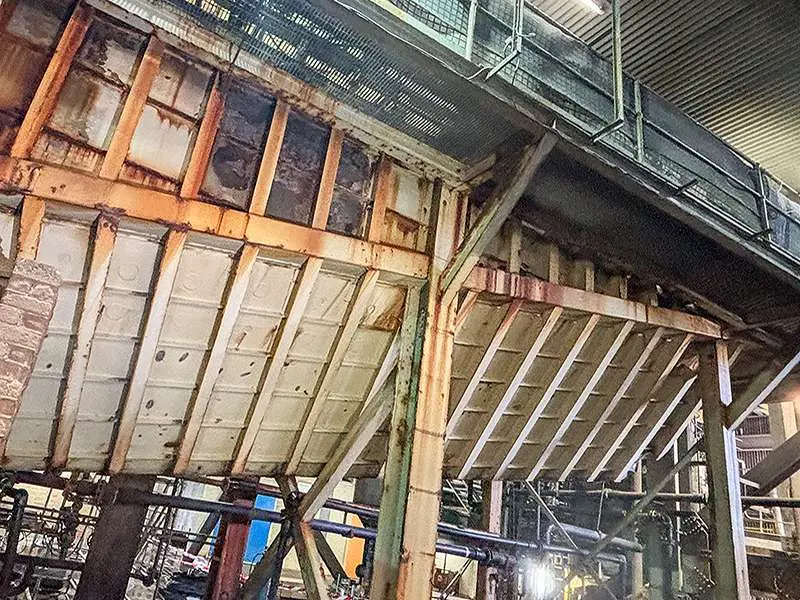

Existing condition of the ash hopper

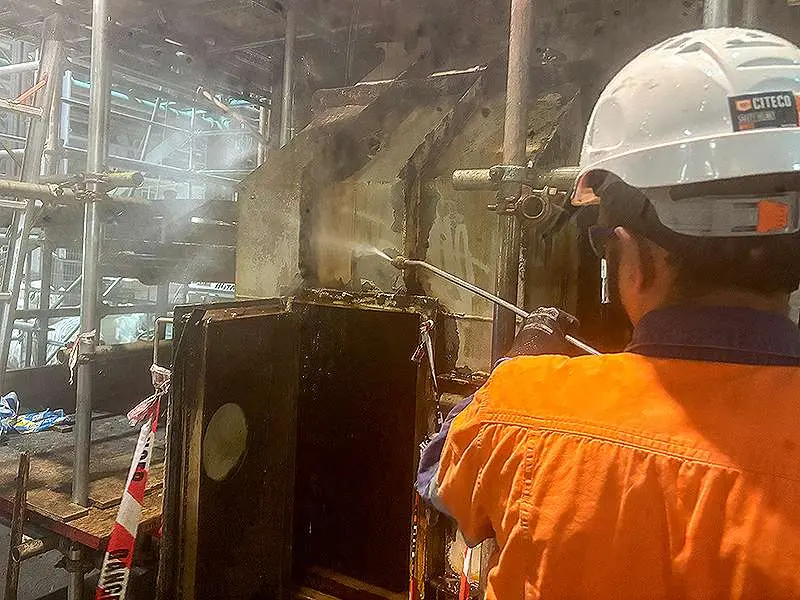

Pressure washing the ash hopper

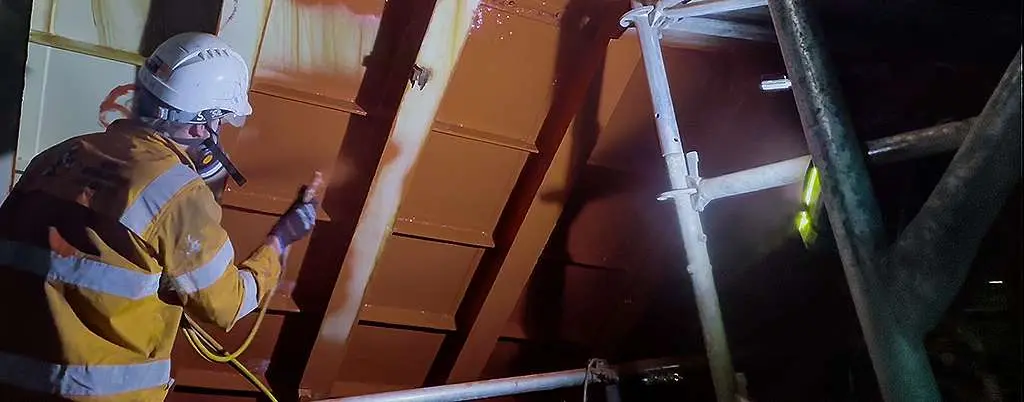

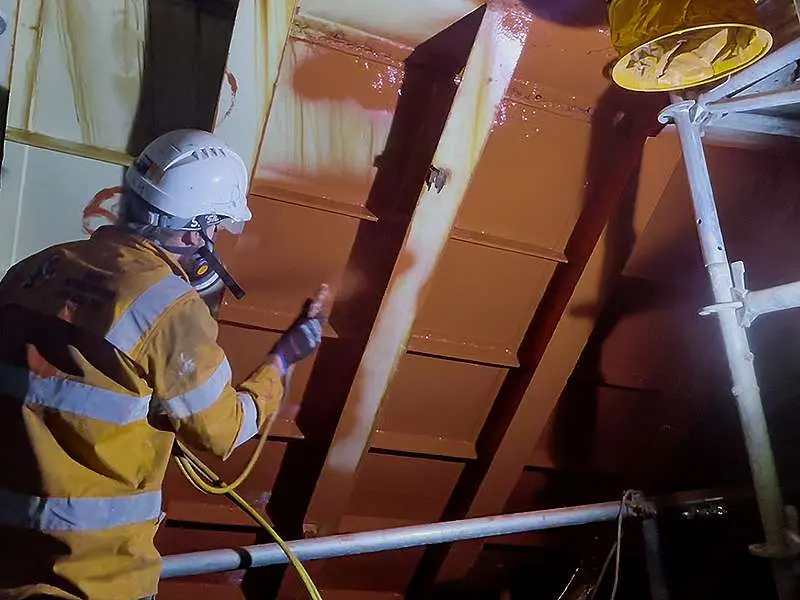

Spraying NanoPrep

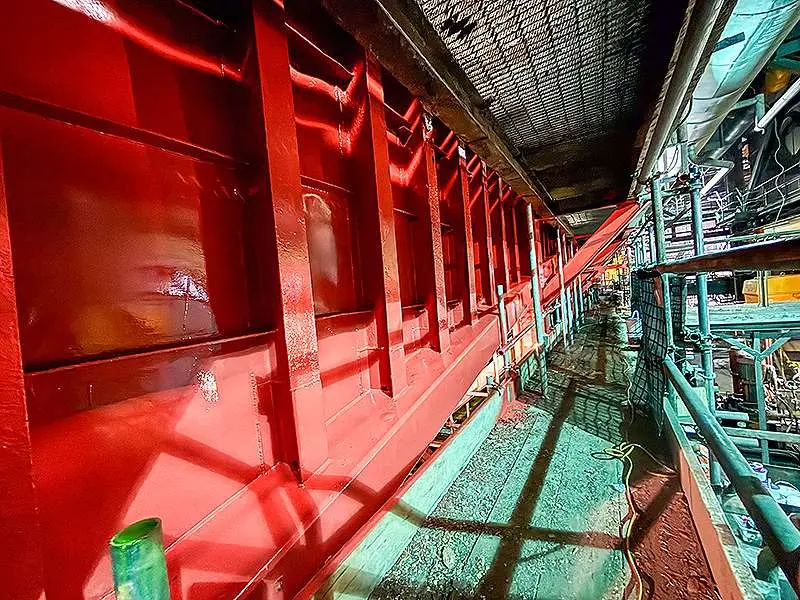

Two coats of NanoPrep

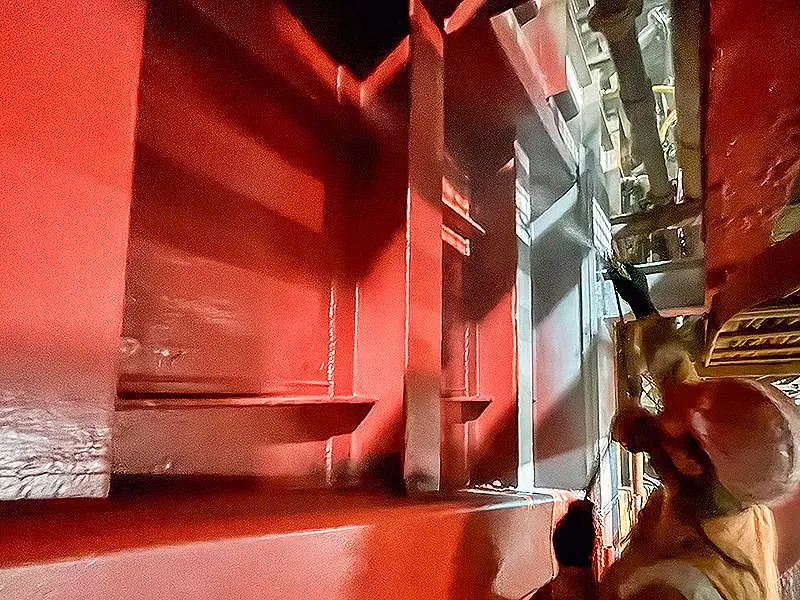

Spraying of the top coat
Completed application - Externals of the ash hopper
The Outcome
The use of NanoPrep for surface preparation proved to be an excellent solution, enabling a quick turnaround by eliminating the need for abrasive blasting. NanoPrep not only saved a significant amount of time but also allowed the work to proceed safely alongside other workers working on the externals of the casing, which would have been impossible if abrasive blasting was used.
Project Specification
| Item | Detail |
|---|---|
| Industry | Power Generation |
| Application | External Coating on Ash Hopper |
| Surface condition | Degraded coating, exposed corroded steel |
| Surface preparation | Pressure wash — no blasting |
| Products | NanoPrep, Jotun |
| Location | NSW, Australia |
| Application date | Nov 2024 |
| Key requirement | Fast turnaround during shutdown, no blasting near workers |
More Information?
For more information about NanoPrep products and services, fill out the form below and one of our team will be in touch within 1–2 business days.
Frequently Asked Questions
Can an ash hopper be recoated without abrasive blasting?
Yes. At a coal-fired power station in New South Wales, Rezitech recoated the external casing of an ash hopper without abrasive blasting. The surface was pressure washed, then two coats of NanoPrep were spray-applied, followed by a Jotun topcoat. The work was completed within a major shutdown period.
Can NanoPrep be applied over existing paint?
Yes, where the existing paint is still in good condition. On this power station ash hopper, NanoPrep was applied without removing the sound existing paint system.
Why avoid abrasive blasting during a power station shutdown?
Abrasive blasting needs the area cleared of other workers and takes time to set up and clean up, which is difficult in a tight shutdown window. On this ash hopper, Rezitech used NanoPrep with pressure washing instead, so coating work could proceed alongside other trades working on the casing and still finish within the shutdown.
How was the ash hopper prepared and coated?
The ash hopper’s external casing was pressure washed to remove loose material, with no abrasive blasting. Rezitech’s onsite team then spray-applied two coats of NanoPrep to the degraded and corroded areas, followed by a spray-applied Jotun topcoat to complete the protective system.
Can coating work continue alongside other trades during a shutdown?
On this coal-fired power station ash hopper, it could. Because NanoPrep only needed pressure washing rather than abrasive blasting, Rezitech’s team coated the casing while other workers continued working on it, which would not have been possible with blasting. That helped the customer complete the job within the shutdown.
