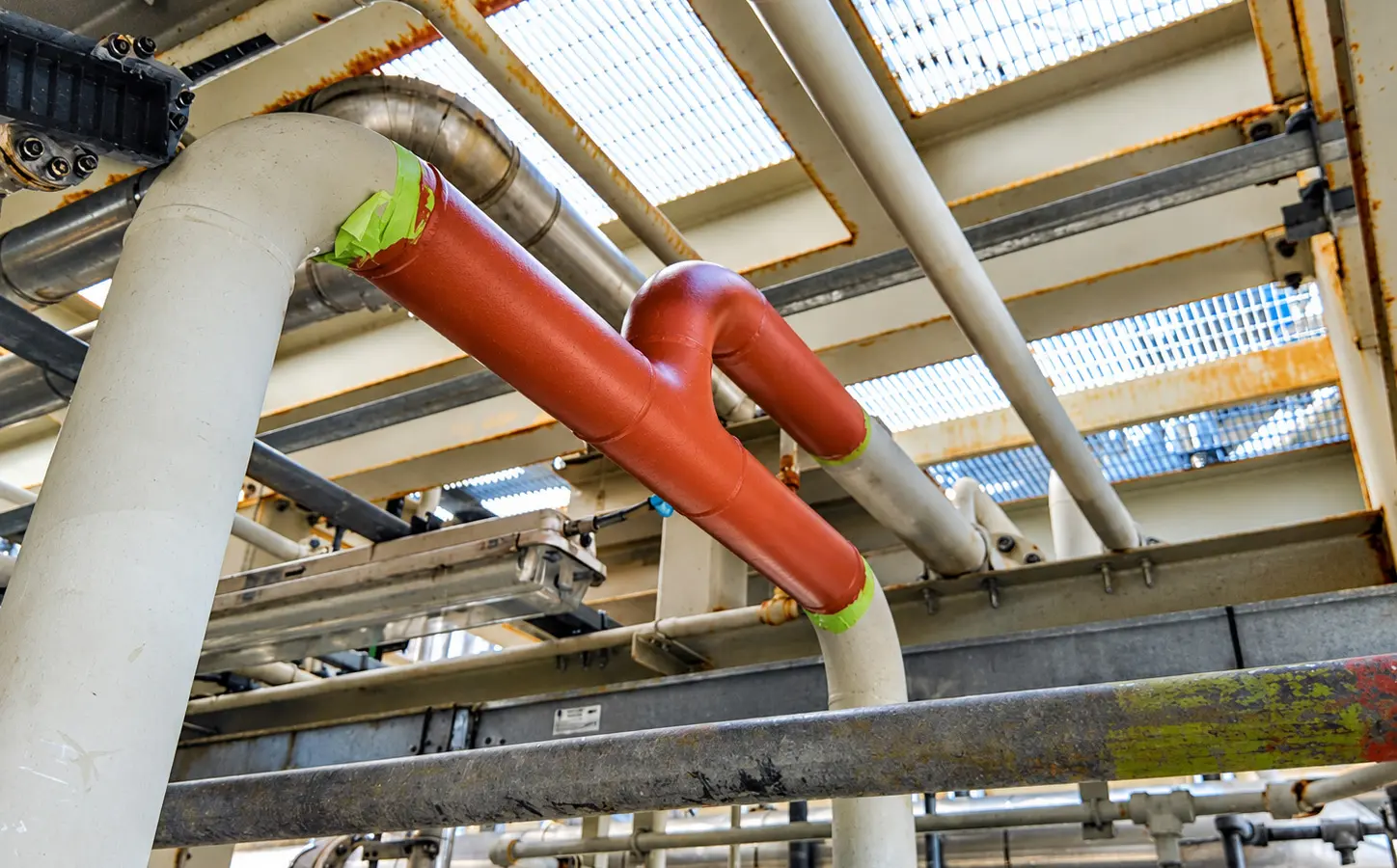

Pipework corrosion protected with NanoPrep without blasting
Oil & Gas

Pipework Corrosion Protection Without Blasting

NanoPrep protects pipework without blasting

Download Case Study
Industry: Oil & Gas
Application: Offshore Pipework Corrosion Protection
Products: NanoPrep, PPG PSX 700 Topcoat
Customer Location: New Zealand
Application Date: Jan 2019

The Problem

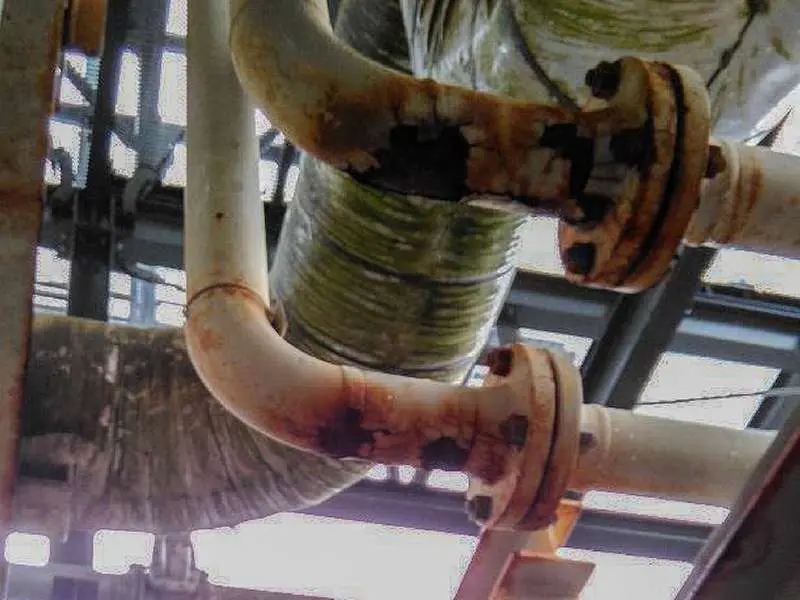

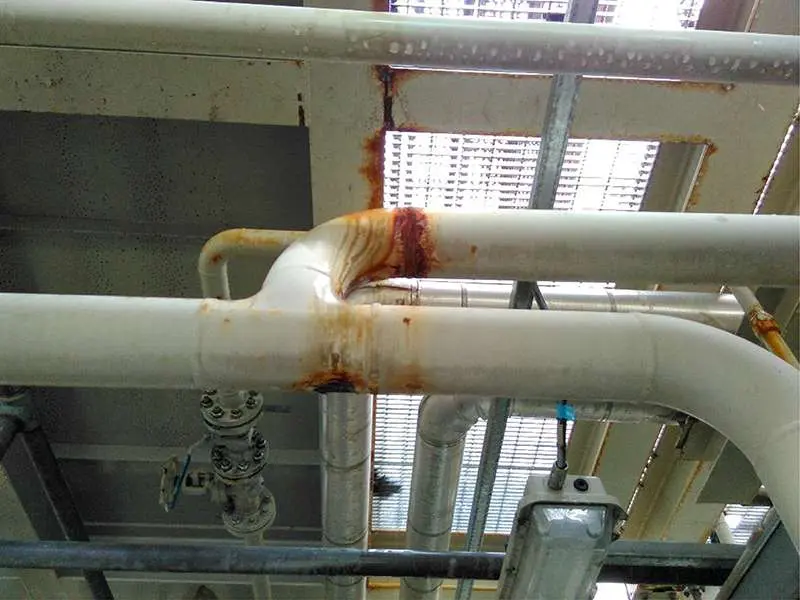

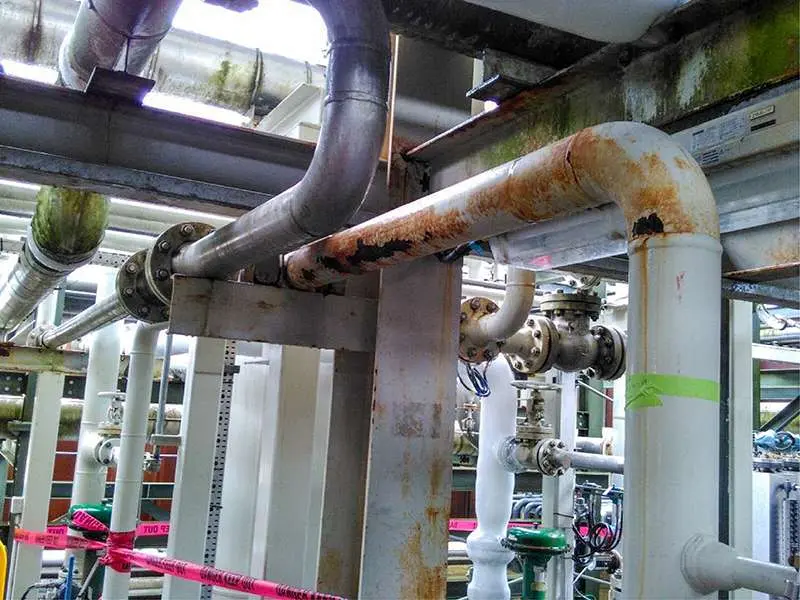

An offshore Oil & Gas facility required coating remedial work carried out on pipework located in areas where it was not possible to perform surface preparation by abrasive blasting due to wet and icy surfaces, and the costs associated with shutting down operations.

The Application

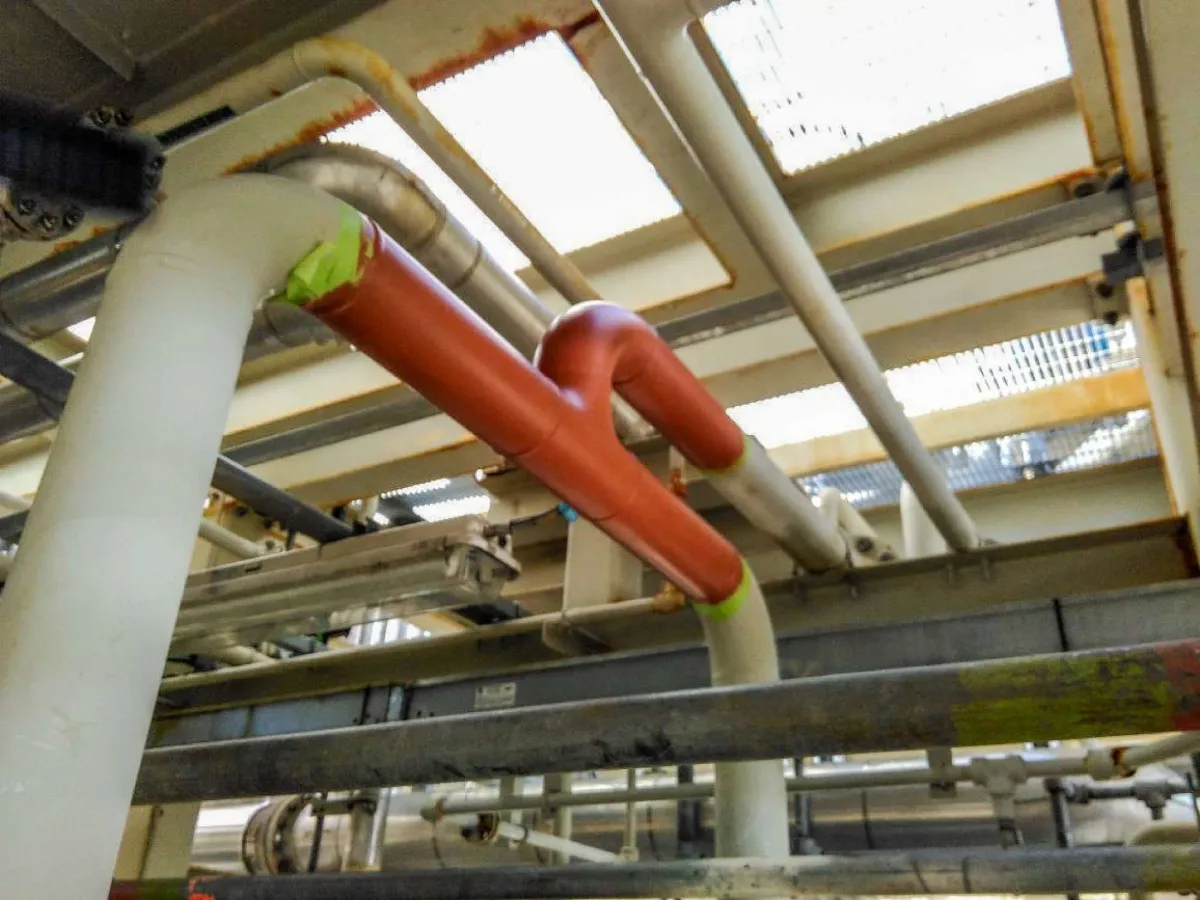

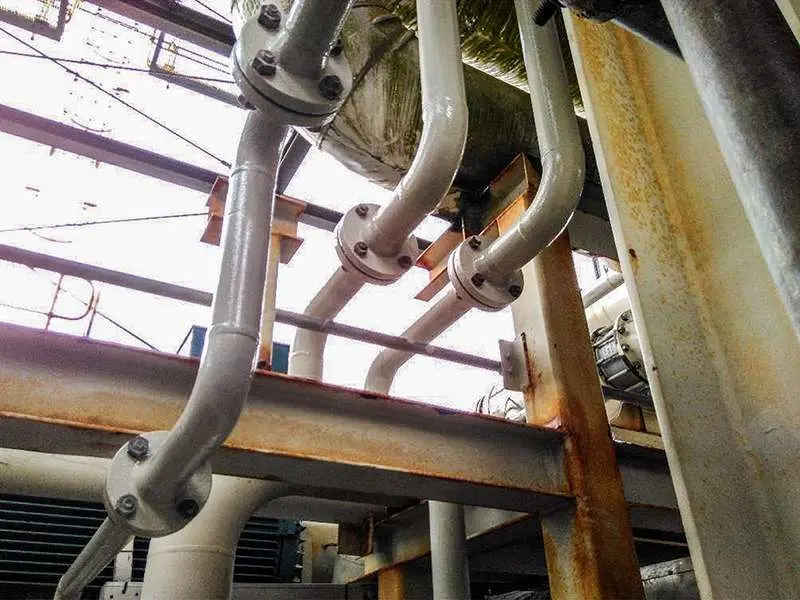

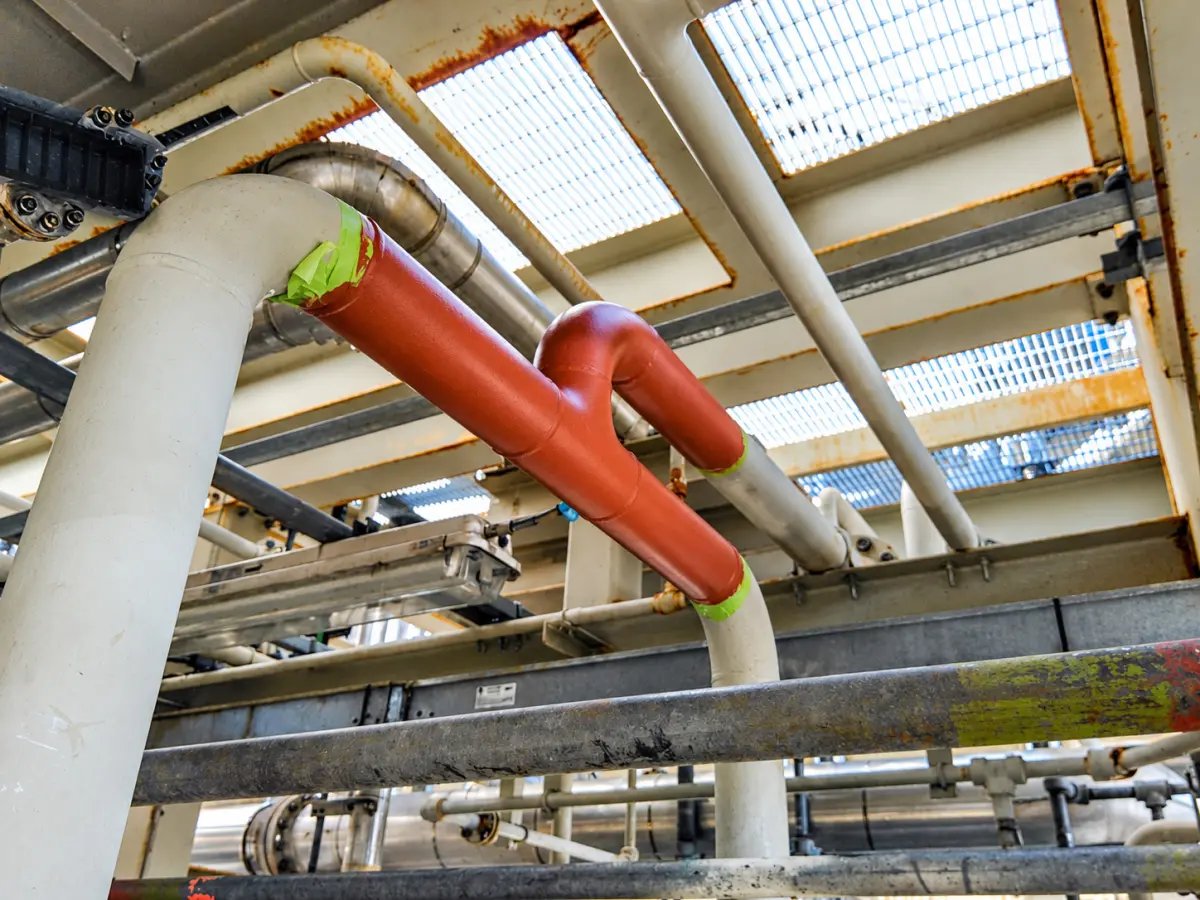

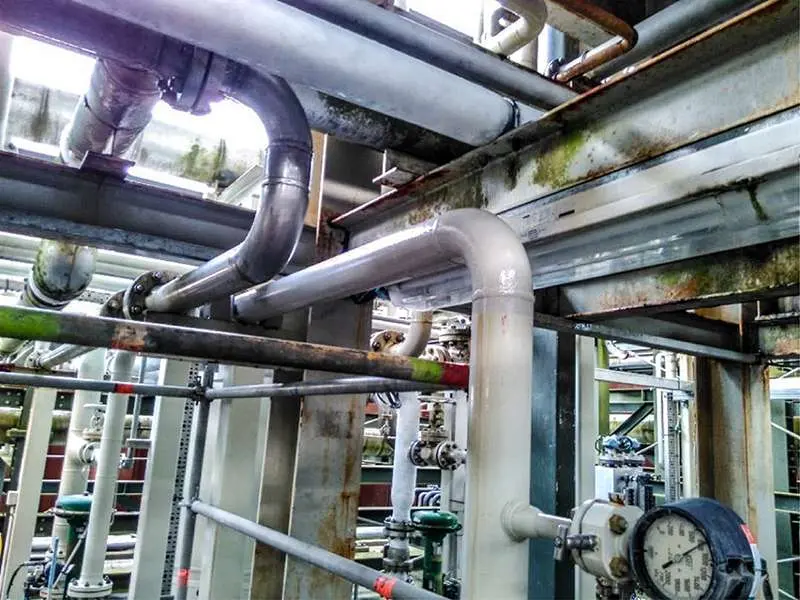

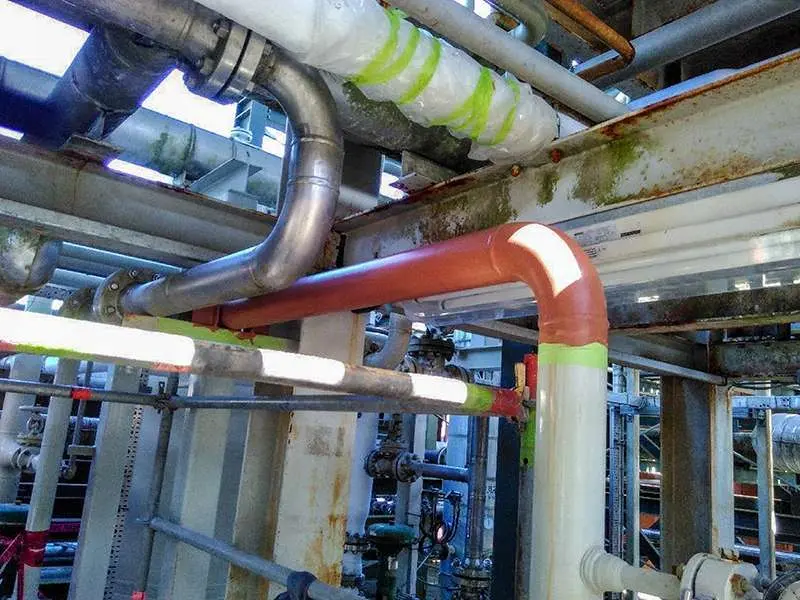

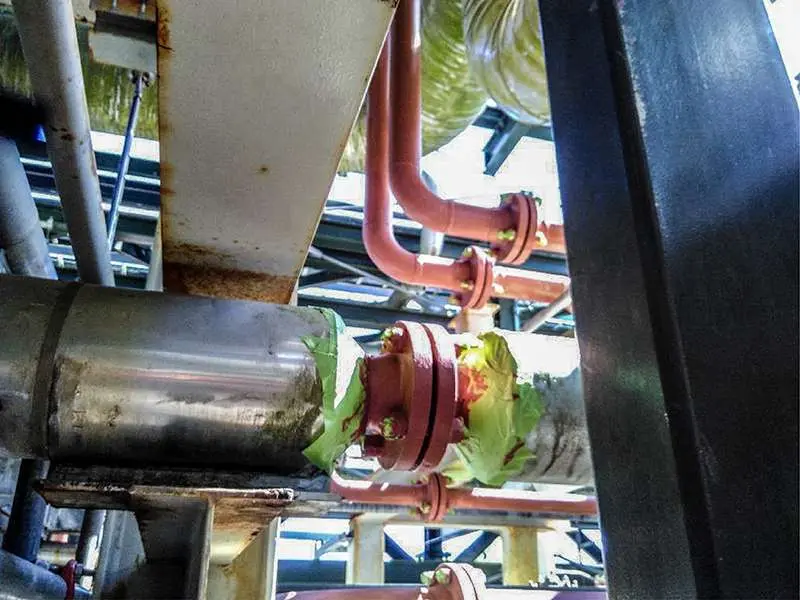

NanoPrep was selected as the preferred surface preparation solution as it provided an effective, low cost alternative to abrasive blasting in the form of a simple low pressure power wash (3500 psi) combined with power tool cleaning. In addition, it is suitable for a variety of topcoats and can be applied to rusted, damp or dry surfaces. After application, a final layer of PPG PSX 700 was applied.

The Outcome

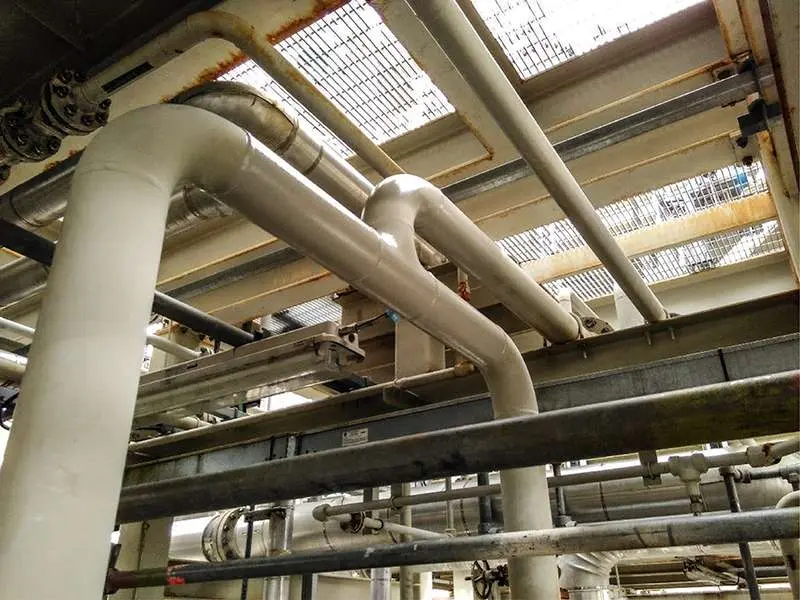

Using NanoPrep for surface preparation proved to be a highly effective solution, delivering a rapid turnaround by eliminating the need for abrasive blasting. This allowed the customer to ensure long-term protection of the pipework without operational shutdowns whilst saving time and money. Six years on, the coating remains in very good condition.

Project Specification

Item Detail
Industry Oil & Gas — Offshore
Application Offshore pipework — confined areas
Surface condition Corroded carbon steel — wet and icy surfaces
Surface preparation Low-pressure power wash (3500 psi) + power tool clean
NanoPrep Two coats applied by brush at 75μm
Topcoat PPG PSX 700 — one coat at 75μm
Key requirement No blast cleaning, no operational shutdown

More Information?

For more information about NanoPrep products and services, fill out the form below and one of our team will be in touch within 1–2 business days.

Frequently Asked Questions

Can corroded offshore pipework be coated without abrasive blasting?

Yes. On an offshore oil and gas facility in New Zealand, Rezitech used NanoPrep to prepare and protect corroded carbon steel pipework where abrasive blasting was not possible. The surface was prepared with a 3,500 psi pressure wash and power tool cleaning, then coated with two coats of NanoPrep and a topcoat, with no blasting and no operational shutdown.

How do you prepare rusted pipework for NanoPrep?

Firmly adhered rust does not need to be removed. On this offshore project the pipework was cleaned with a 3,500 psi pressure wash followed by power tool cleaning to remove loose rust and coating. NanoPrep was then brushed on in two coats of 75 microns each, where it reacts with the remaining rust to form a stable base for the topcoat.

Can NanoPrep be applied to damp steel?

Yes. NanoPrep can be applied to rusted, damp or dry steel surfaces. That made it suitable for this offshore pipework, where wet and icy conditions ruled out abrasive blasting. Avoiding blasting also meant the facility did not have to shut down operations to carry out the coating work.

Can NanoPrep be used with other topcoats?

Yes. NanoPrep is suitable for a variety of topcoats. On this offshore pipework project, one coat of PPG PSX 700 was applied at 75 microns over two coats of NanoPrep. For most projects Rezitech recommends R230 TopCoat, a water-based, UV-resistant topcoat designed for use over NanoPrep. Contact Rezitech to confirm the right topcoat for your environment.
