Structural Steel Column Corrosion Protection
7 Year NanoPrep Trial
2017
In September 2017 we applied two coats of NanoPrep to the base of a structural steel column at a sugar mill. The column forms part of the structure of a sugar conveyor located within 20 feet of a salt water river. The whole structure is suffering severe weathering and corrosion damage, and it has been deemed impractical to abrasive blast and coat the conveyor.
The client tested NanoPrep on a small, corroded steel area to see if it could provide a suitable surface for a protective top coat.

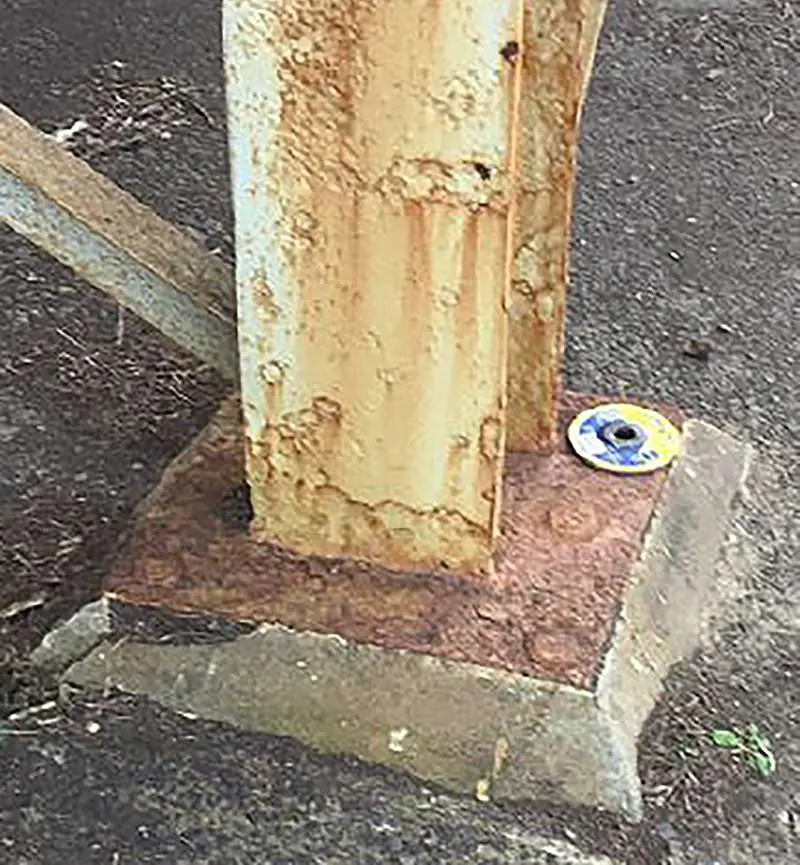

Corroded base of substrate

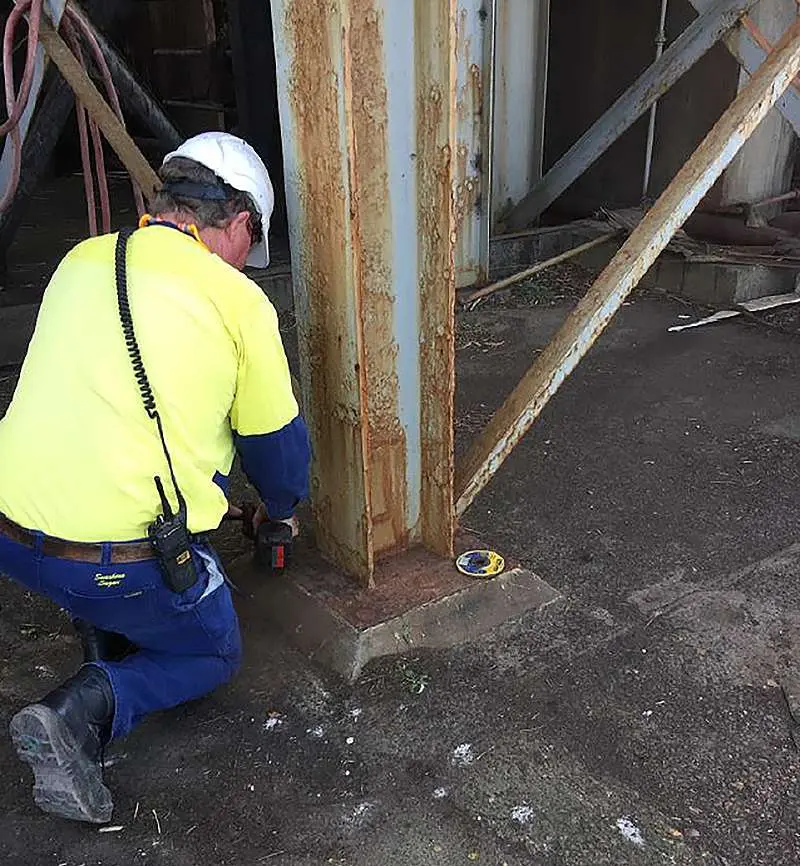

Base being prepared by hand tool

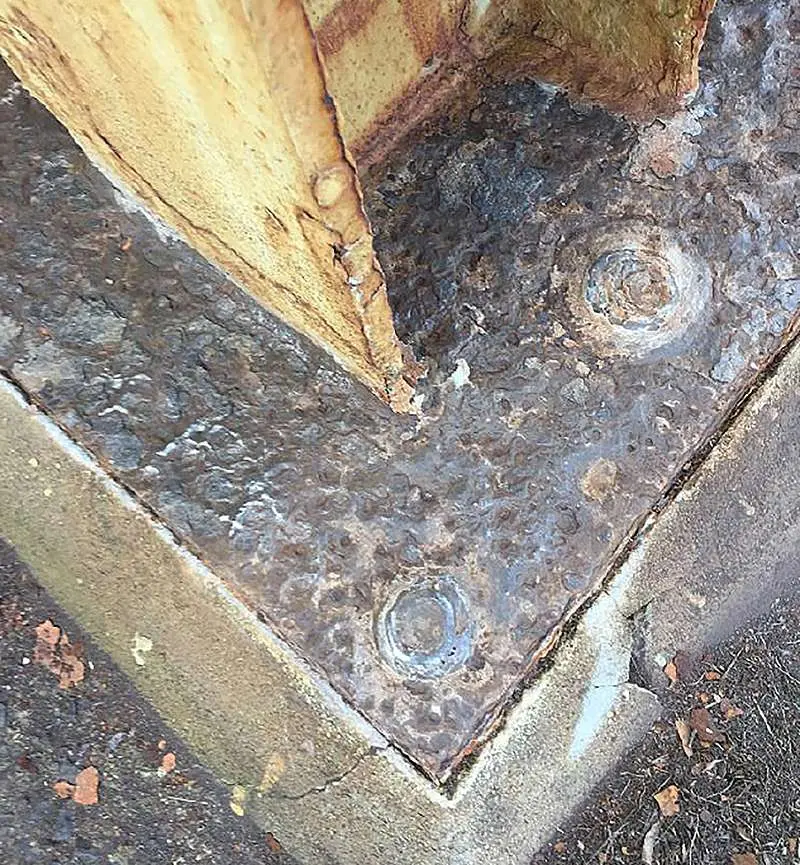

Completed Surface Preparation

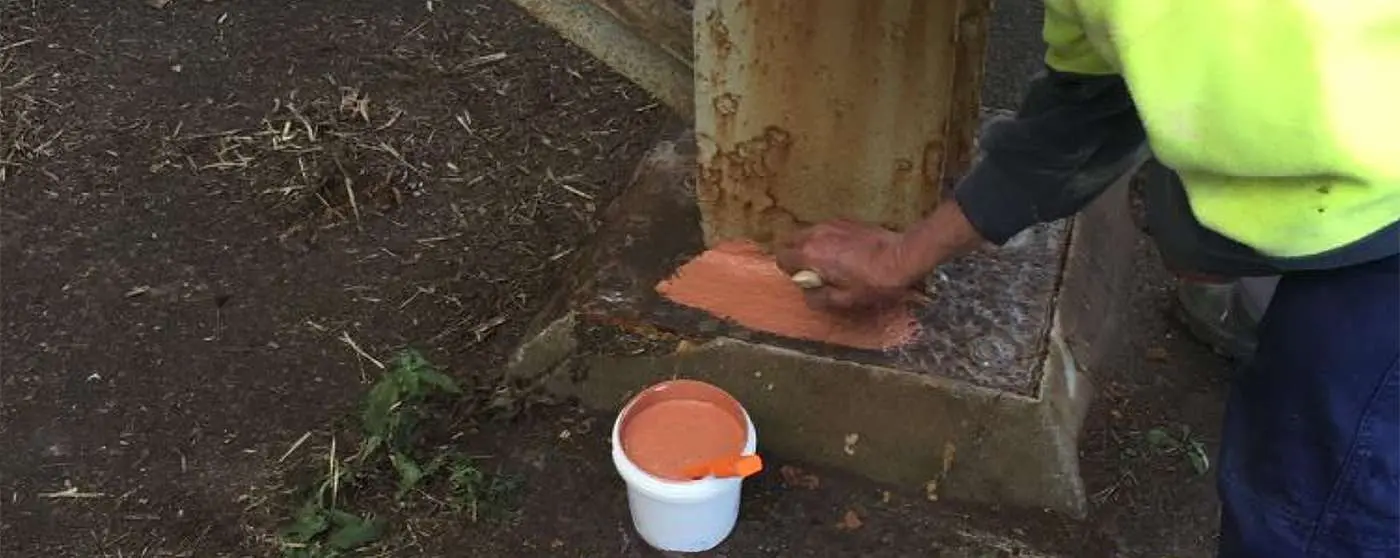

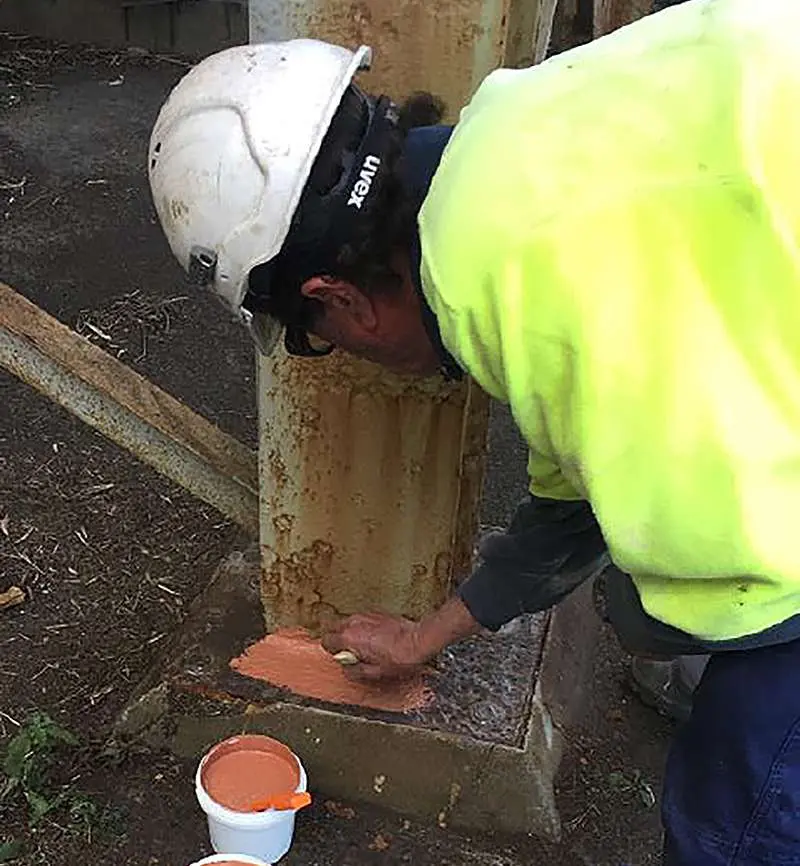

NanoPrep applied by brush

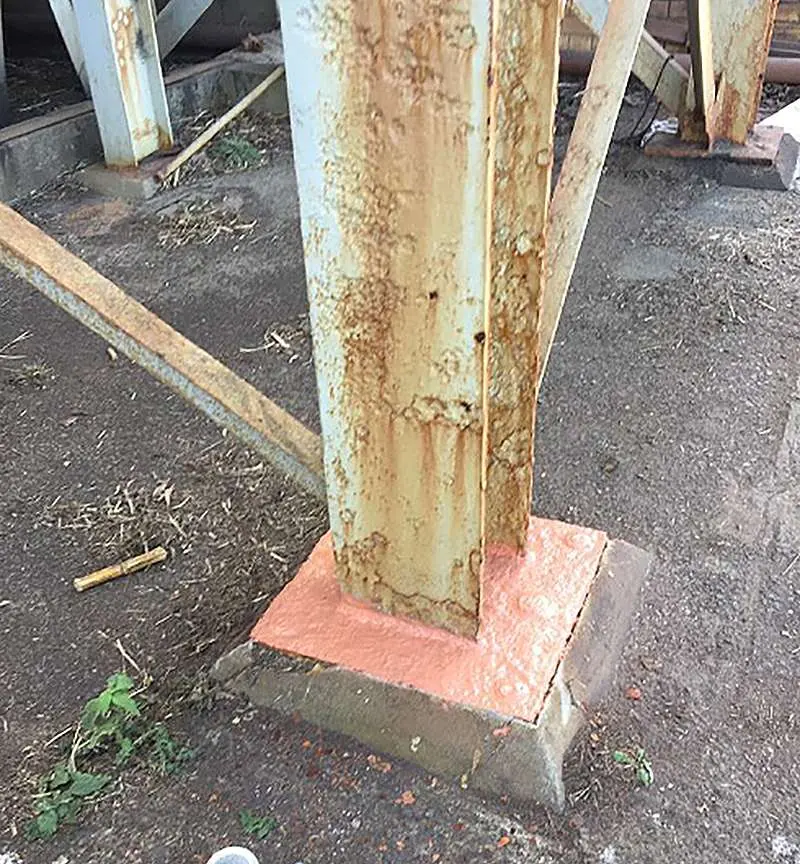

Application of two coats of NanoPrep

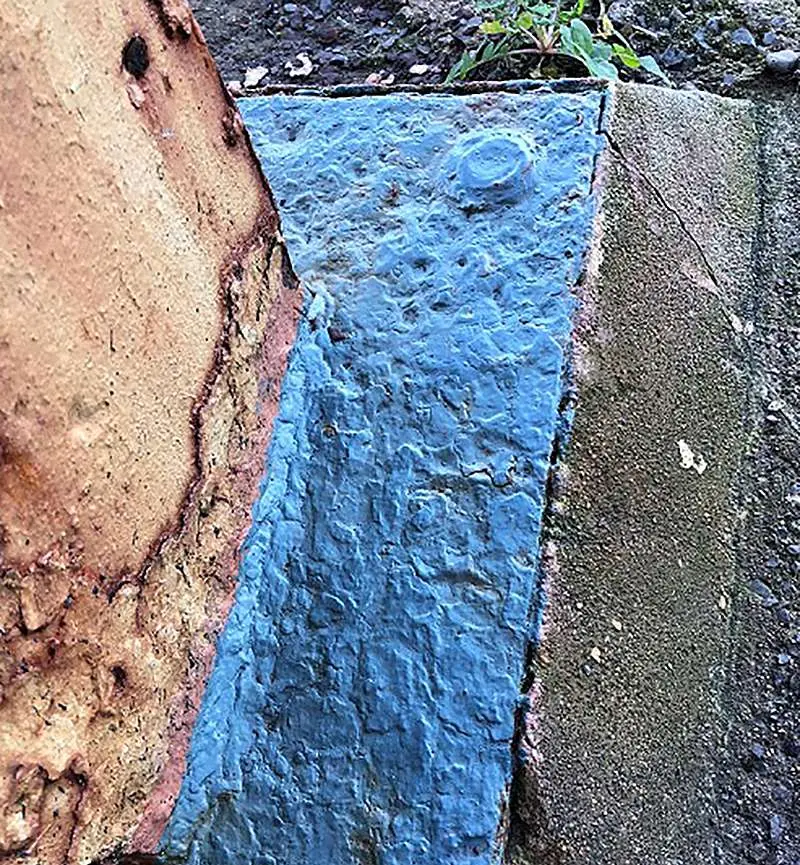

Top coat Applied (six weeks later)
2018 to 2019
An inspection was completed in May 2018. The application had seen no deterioration and system was in good condition.
An additional inspection was completed in August 2019 where there was clear evidence of rust on the coating, however this was from the salt water and rust dripping onto the base from above. Once cleaned the application was found to be completely intact and the adhesion of the NanoPrep was excellent.
The system was not drummy (hollow) at all when tapped with a screw driver and the base remains completely protected.

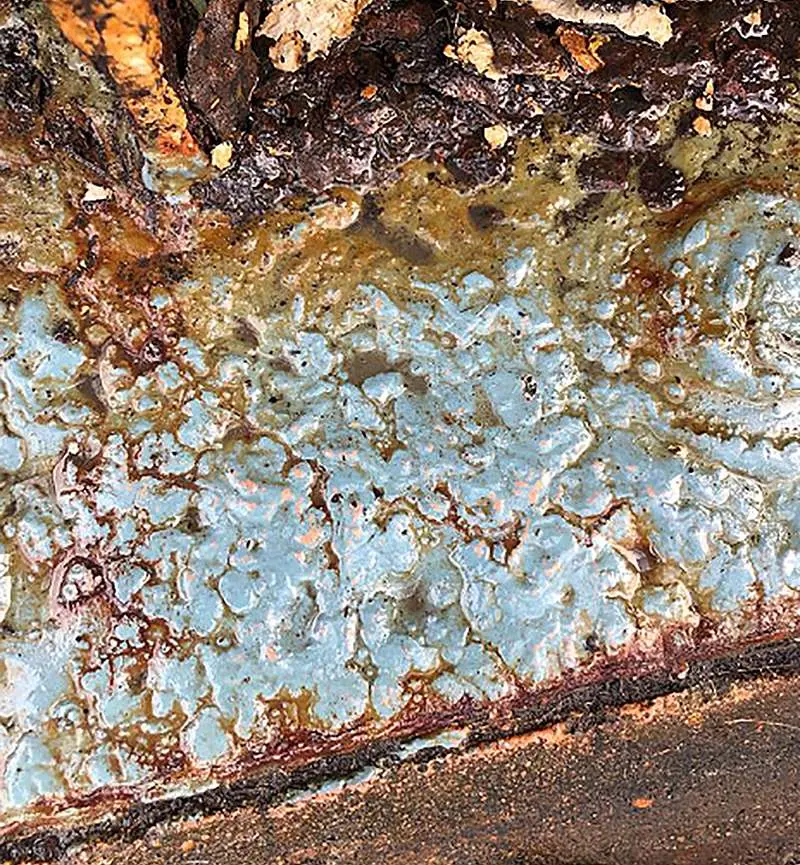

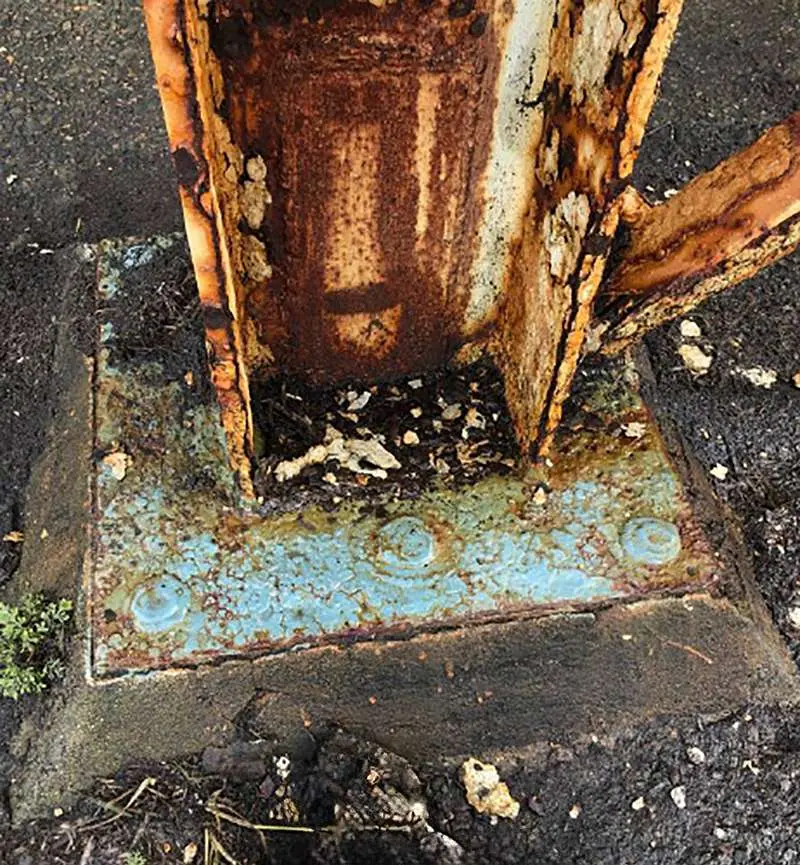

Base showing excellent adhesion of NanoPrep
2020 to 2021
A third Inspection of the application was conducted in March 2020. Again, heavy rust had formed on the application from the structure above. When tapped with a screw driver the coating was very solid and continues to protect against the harsh conditions.
A fourth inspection of the application was conducted in November 2021. Again, heavy rust had formed on the application from the structure above. The coating was still in very good condition and continues to protect against the harsh conditions.
2024
Midway through 2024, 7 years on, the coating is still tightly bonded to the surface and protected against further corrosion, even in the harshest salt water environment.

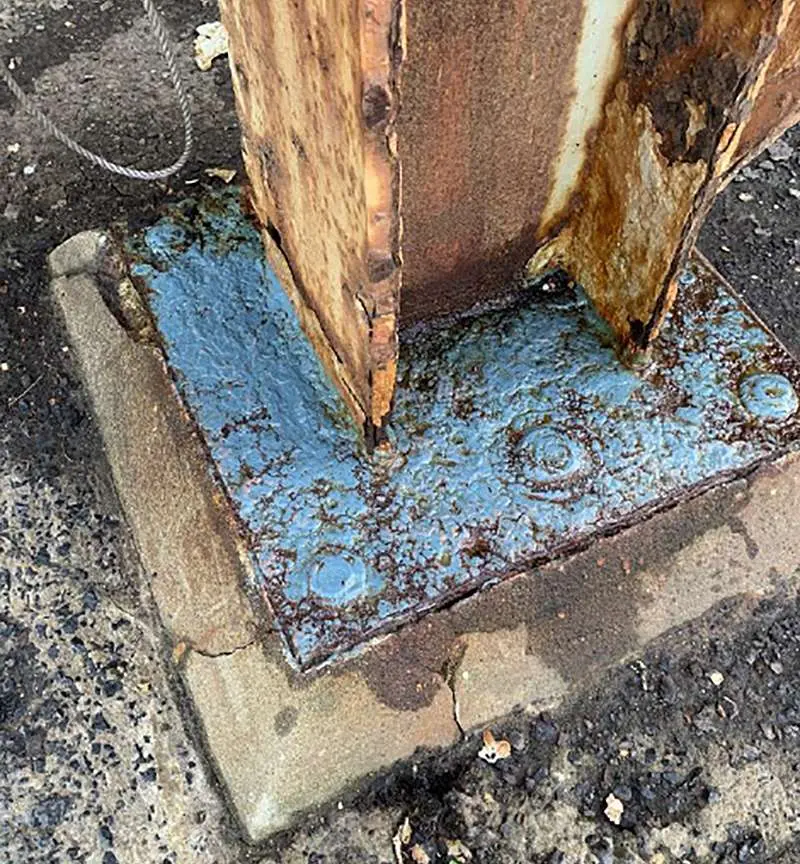

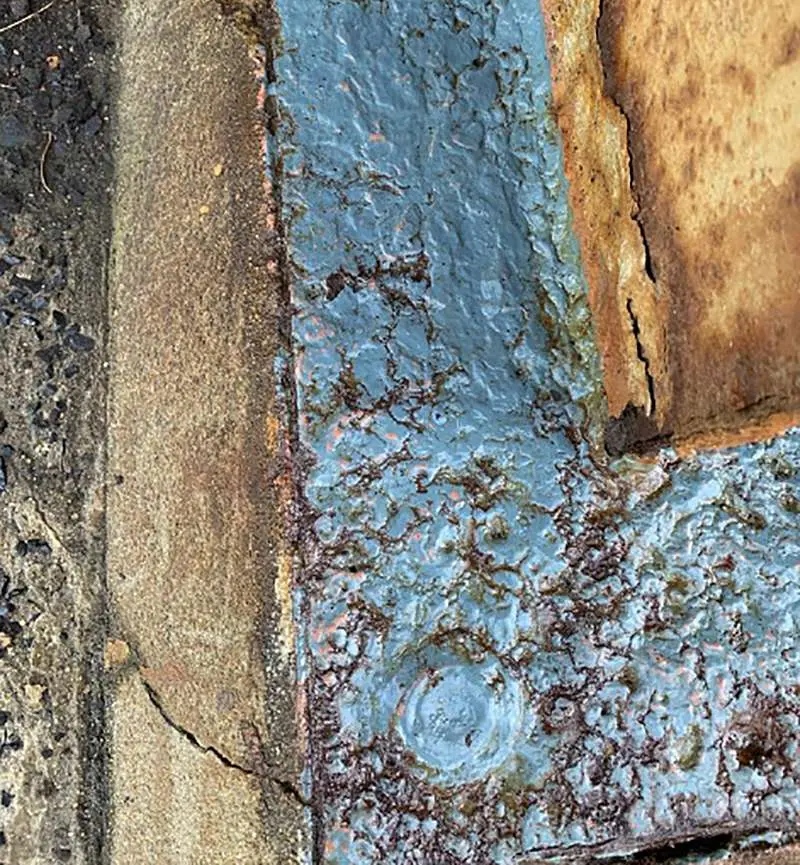

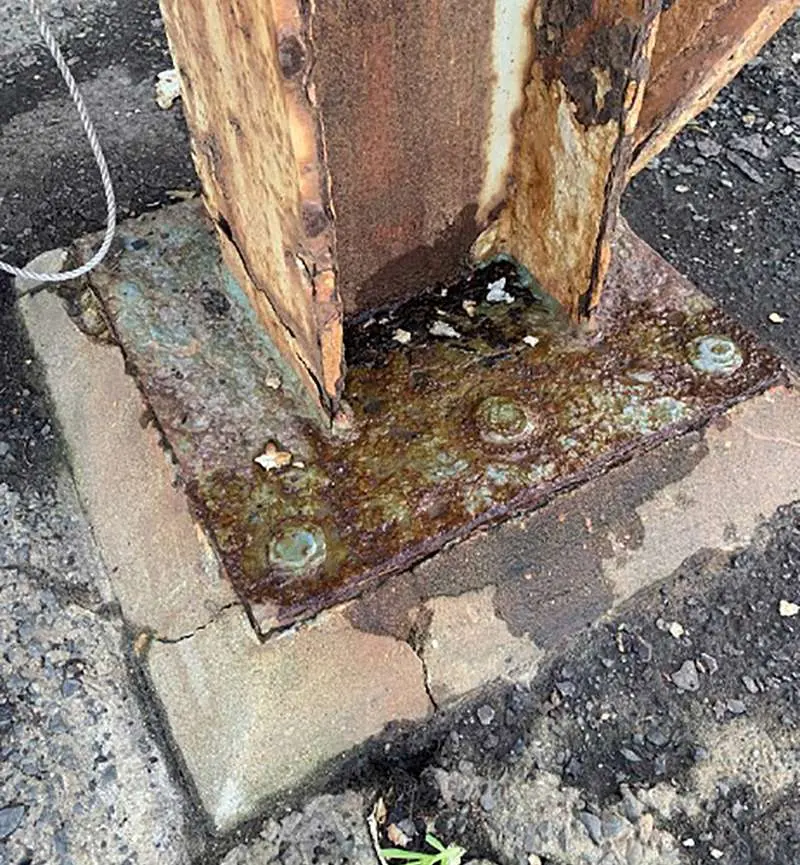

Base before and after cleaning of surface rust, showing application of NanoPrep in excellent condition
Project Specification
| Item | Detail |
|---|---|
| Industry | Sugar |
| Application | Structural steel column — base corrosion |
| Surface condition | Significant corrosion at column base |
| Surface preparation | Hand tool clean — no blasting |
| Application method | Brush application |
| NanoPrep system | NanoPrep rust primer + compatible topcoat |
| Key requirement | In-situ treatment without production disruption |
More Information?
For more information about NanoPrep products and services, fill out the form below and one of our team will be in touch within 1–2 business days.
Frequently Asked Questions
How long does NanoPrep last on corroded steel?
In a 7-year trial at a Queensland sugar mill, NanoPrep was applied in September 2017 to the corroded base of a structural steel column about 6 metres from a saltwater river. Inspections in 2018, 2019, 2020, 2021 and 2024 found the coating intact and tightly bonded, still protecting the steel against further corrosion.
Can NanoPrep protect steel in a saltwater environment?
Yes. At a Queensland sugar mill, NanoPrep was trialled on a structural steel column about 6 metres from a saltwater river, where the whole conveyor structure suffers severe weathering and corrosion. Seven years after application, the coating remained tightly bonded and continued to protect the steel, even with salt water and rust dripping onto it from above.
How was the steel column prepared for NanoPrep?
The corroded base of the column was prepared with hand tools only, without abrasive blasting, because blasting the conveyor structure was considered impractical. Two coats of NanoPrep were then applied by brush, and a topcoat was applied six weeks later. The work was done in place, without disrupting sugar mill production.
How do you check NanoPrep adhesion over time?
On this sugar mill trial, Rezitech inspected the coating five times over seven years. Rust from the structure above was cleaned off, and the coating was tapped with a screwdriver to check for a hollow or drummy sound, a sign of poor adhesion. Each time the NanoPrep was solid, intact and fully adhered.
Can you coat corroded steel at a sugar mill without stopping production?
Yes. At a Queensland sugar mill, Rezitech treated a corroded conveyor support column in place using hand tool preparation and two brush-applied coats of NanoPrep, with no abrasive blasting and no disruption to production. Seven years later the coating was still tightly bonded and protecting the steel.
