Power Plant Water Tank Corrosion Protection
External tank & steel support repair and coating with Belzona & NanoPrep
Download Case StudyThe Problem
A power plant’s domestic water tank exhibited severe external corrosion, requiring structural repairs and the application of a long-term protective coating system. Due to the tank’s continuous exposure to UV radiation, it also required a UV-stable, heat-tolerant topcoat capable of preventing premature coating degradation.
Abrasive blasting was not a viable surface preparation method due to the high costs associated with containment, encapsulation, and the removal of existing lead-based paint coatings.
The Application
NanoPrep was selected as the preferred surface preparation method as it provided an effective and cost-efficient alternative to abrasive blasting. Surface preparation was completed using a combination of high-pressure power washing (3500 psi) and power tool cleaning, eliminating the need for costly containment and lead paint removal procedures.
Water Tank Corrosion Protection Without Blasting
Before coating work commenced, several structural repairs were required due to severe corrosion damage. The tank underside had extensive pitting, while some of the steel column supports had deteriorated to the point where sections of steel were completely missing.
Belzona 1111 (Super Metal) was used to repair the pitted areas on the tank underside, rebuild lost steel sections, and cold bond reinforcement plates onto the damaged steel supports, restoring structural integrity without the need for hot work.
Once the repairs had fully cured, the steel supports and surrounding areas were coated with two coats of NanoPrep, followed by two coats of R230 TopCoat.
The tank sides and roof were also protected using NanoPrep and R230 TopCoat. Again, surface preparation required only high-pressure water washing, eliminating the need for abrasive blasting. Brushes and rollers were used to stripe coat weld seams, edges, and difficult-to-access areas prior to spray application.
Two coats of NanoPrep and two coats of R230 TopCoat were then applied by airless spray, providing long-term corrosion and UV protection. Both products proved highly user-friendly due to their single-pack formulation, allowing for efficient and straightforward application.

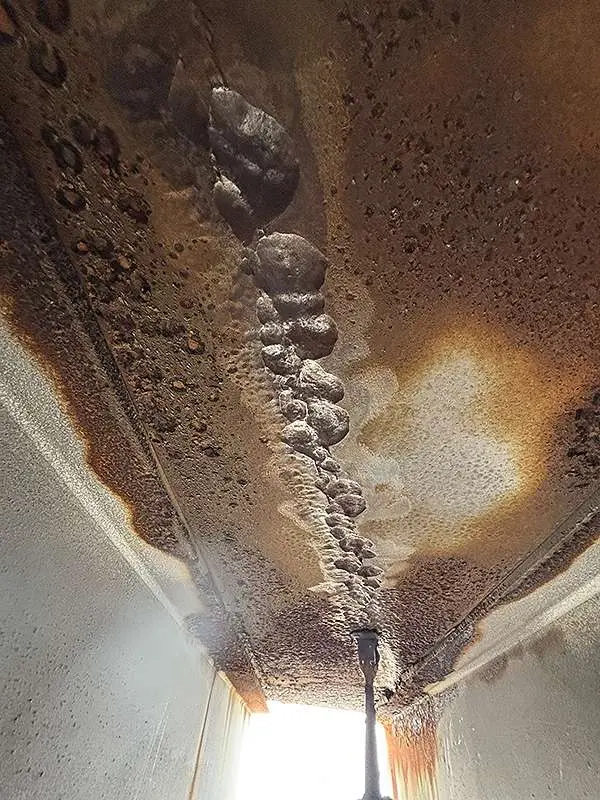

Water tank underside showing corrosion and pitting damage

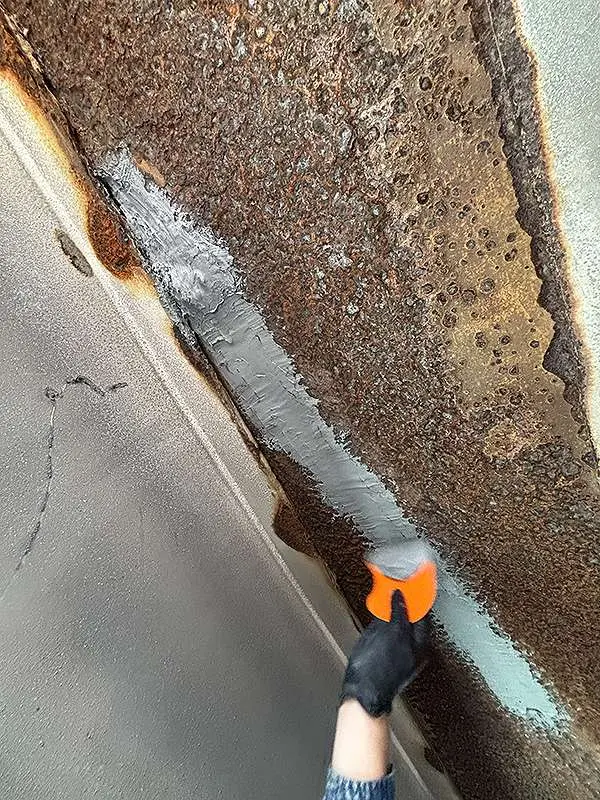

Belzona 1111 was used to repair
pitting and reinforce corroded areas

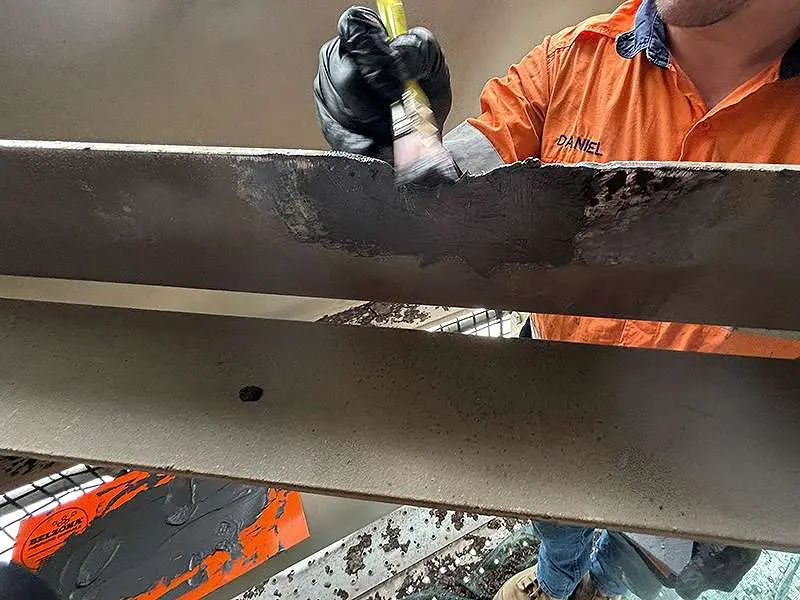

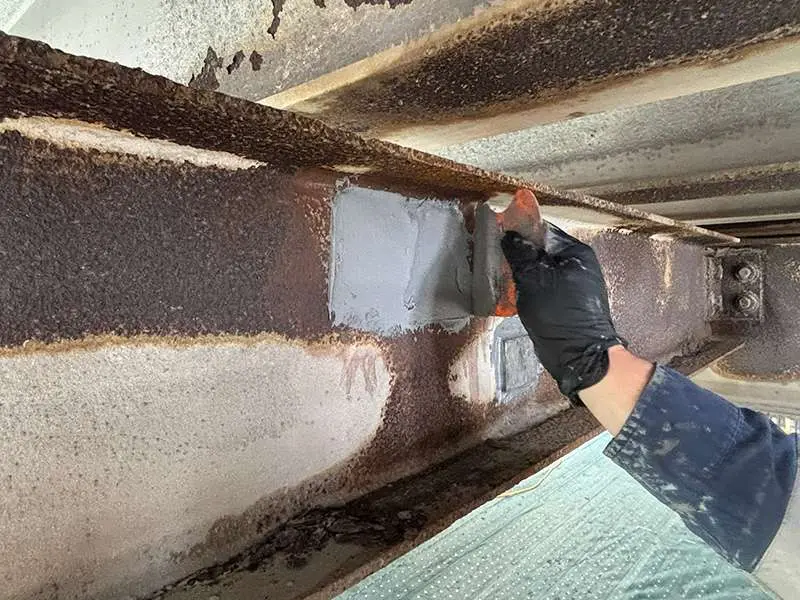

Rebuilding of metal loss on steel supports using Belzona 1111
Belzona 1111 used to repair corroded steel supports

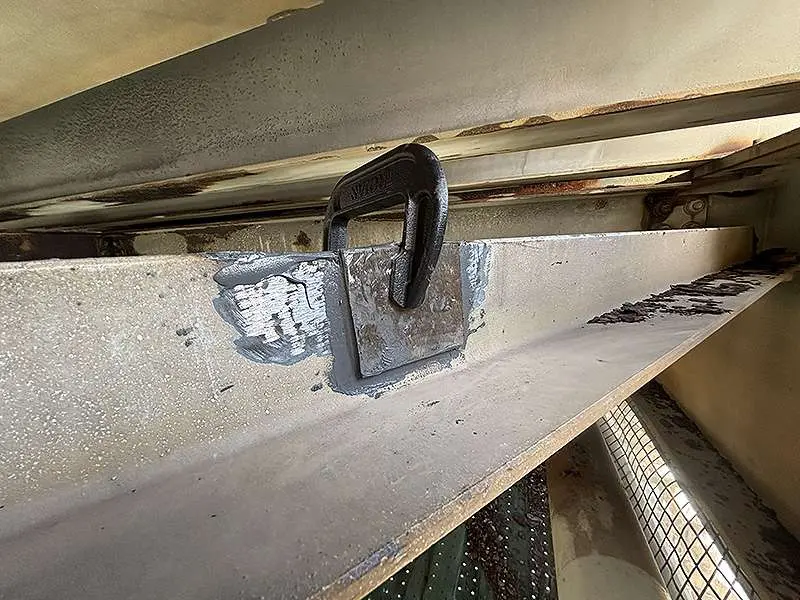

Reinforcement plates cold bonded onto
the damaged steel supports with Belzona 1111

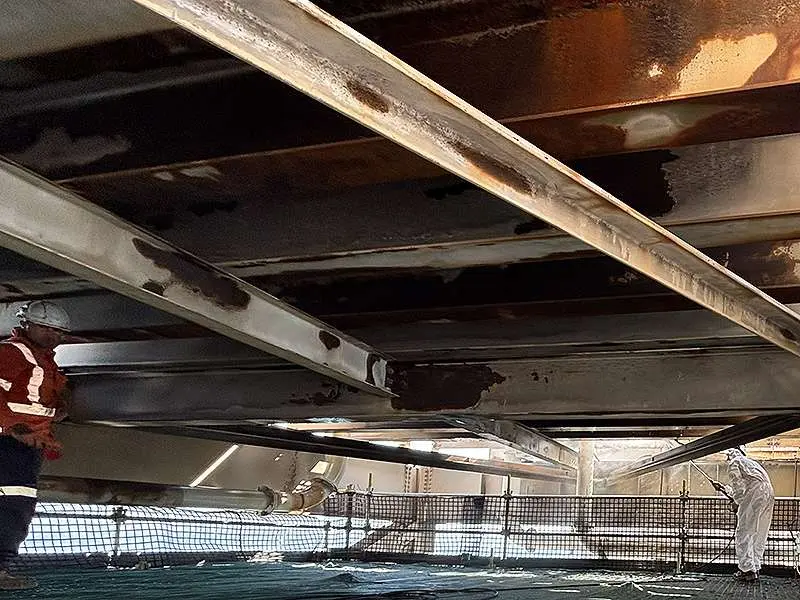

Corroded tank underside and steel supports before repairs

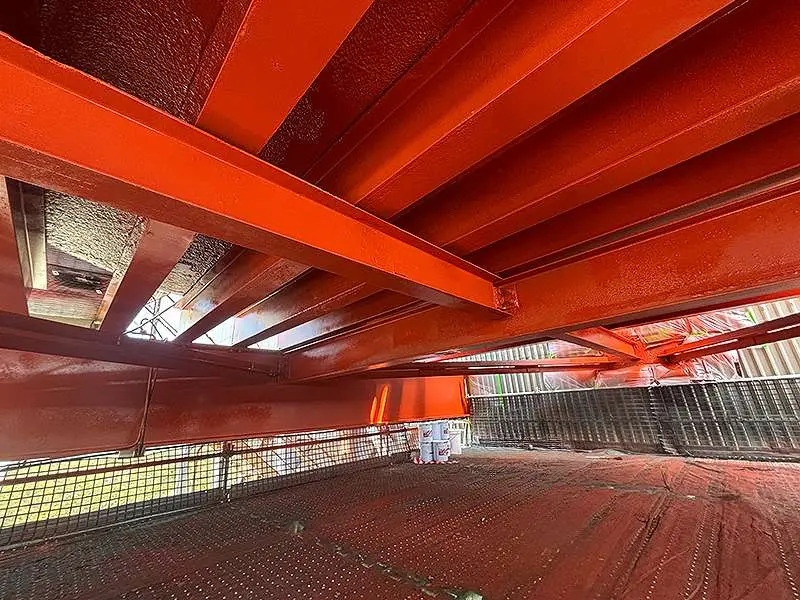

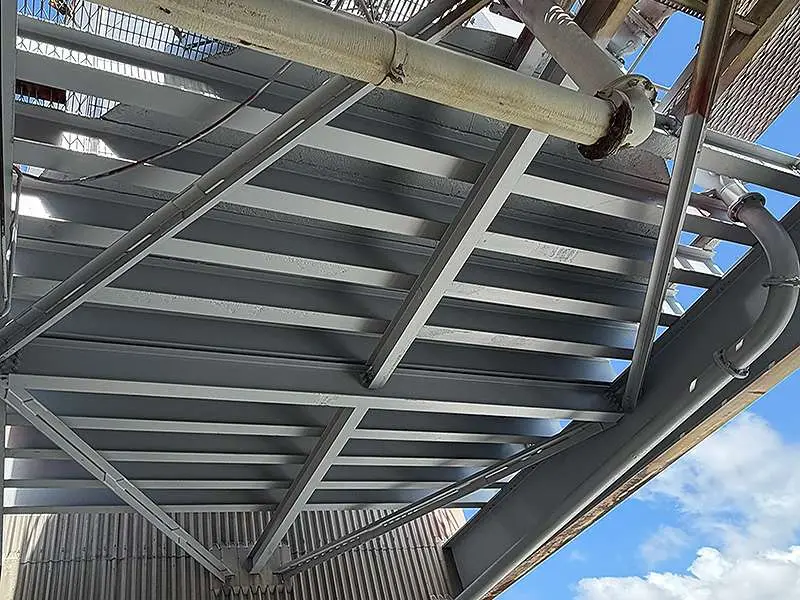

Tank underside and steel supports after application of NanoPrep

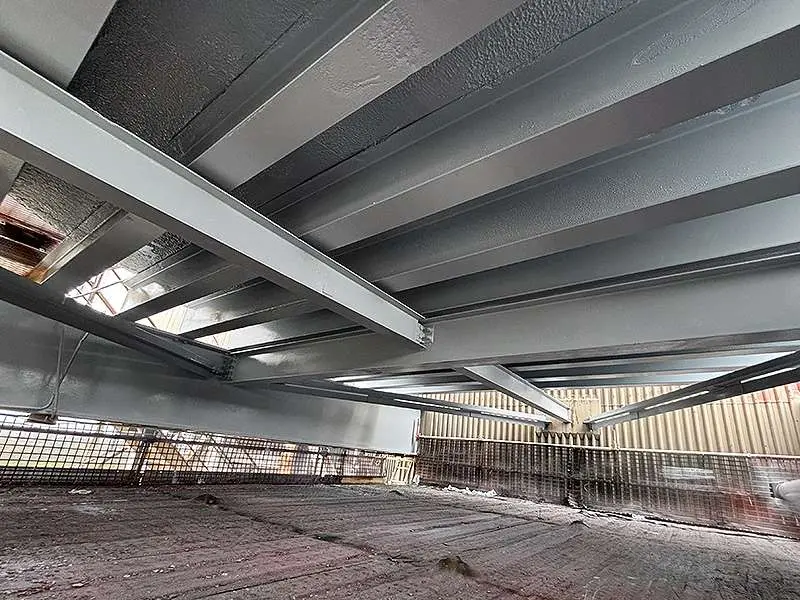

Corroded tank underside and steel supports after application
of NanoPrep and R230 TopCoat

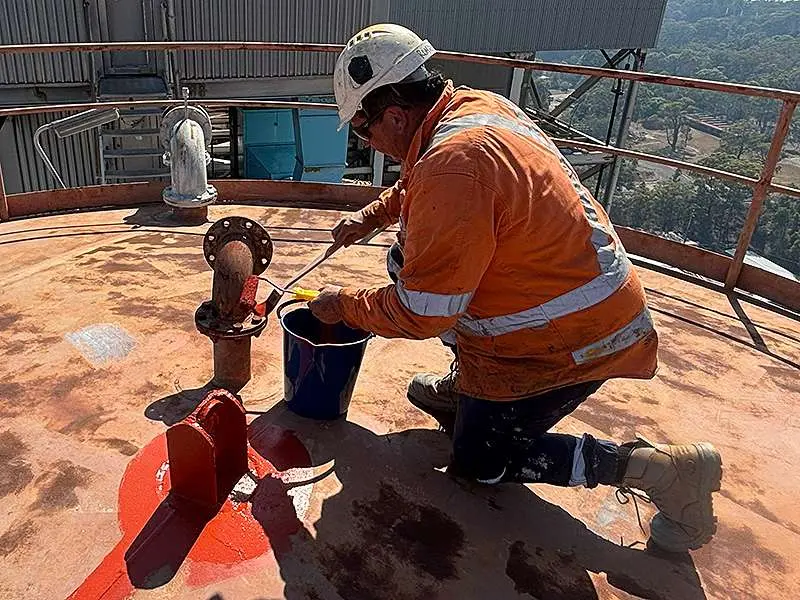

NanoPrep applied by roller to stripe coat weld seams, edges,and difficult-to-access areas

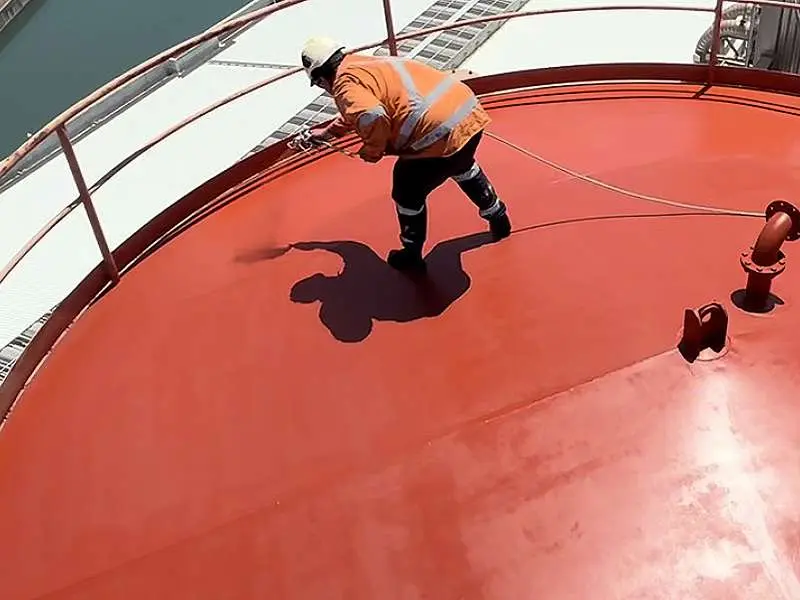

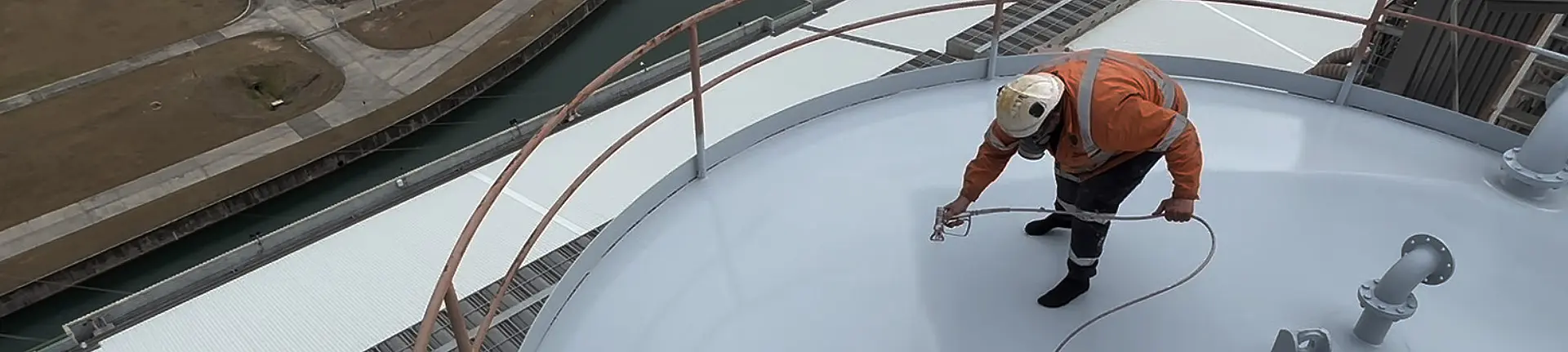

NanoPrep applied by airless spray

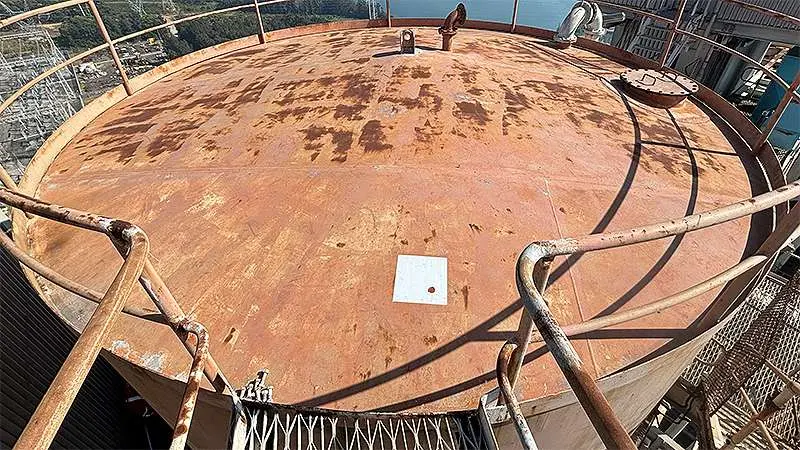

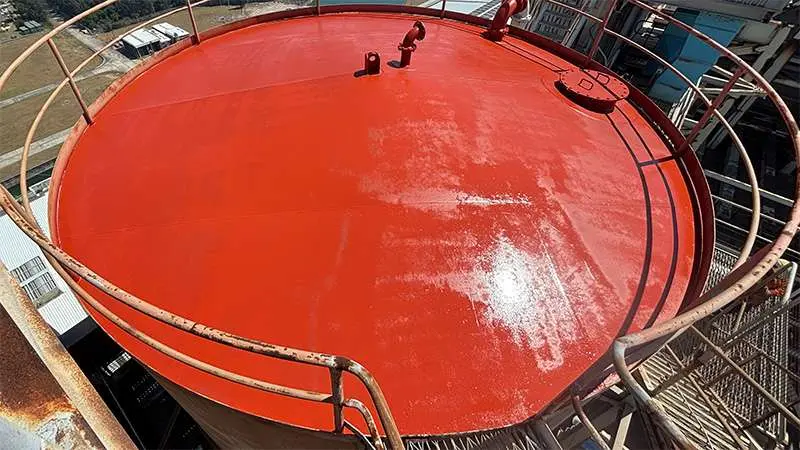

Tank roof before application of NanoPrep

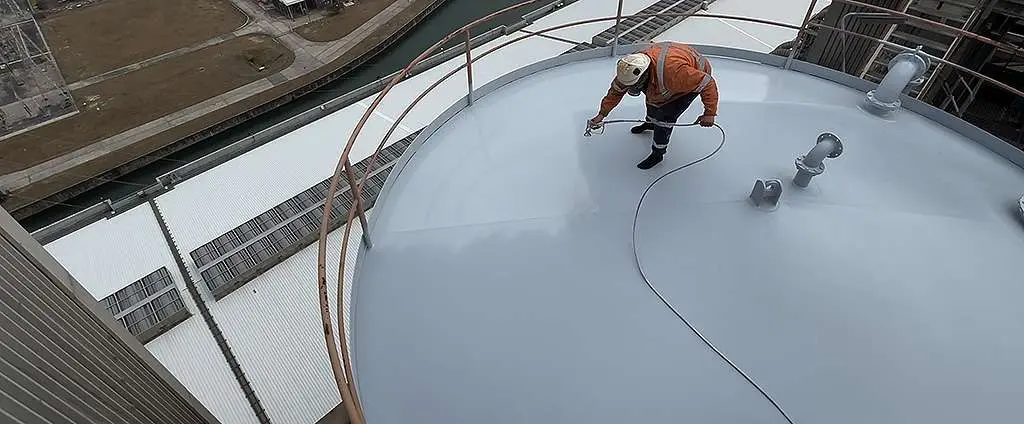

Tank roof after application of NanoPrep

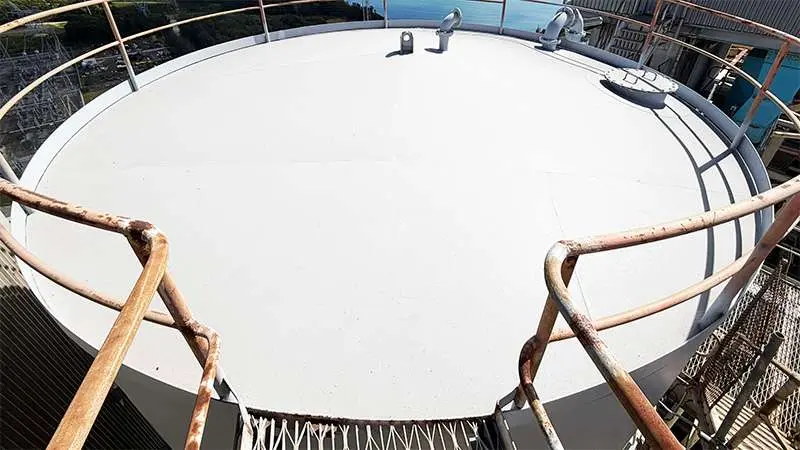

Tank roof following application of R230 TopCoat, providing a
durable, long-term corrosion and UV protection solution
The Outcome
The project was successfully completed in just five days, with severely corroded areas repaired using Belzona and protected with NanoPrep and R230 TopCoat.
By eliminating the need for abrasive blasting, the project avoided the high costs and delays associated with containment and lead paint removal, while still delivering a durable, long-term corrosion and UV protection system for the tank and supporting steelwork.
Corroded tank underside and steel supports after application of
NanoPrep and R230 TopCoat

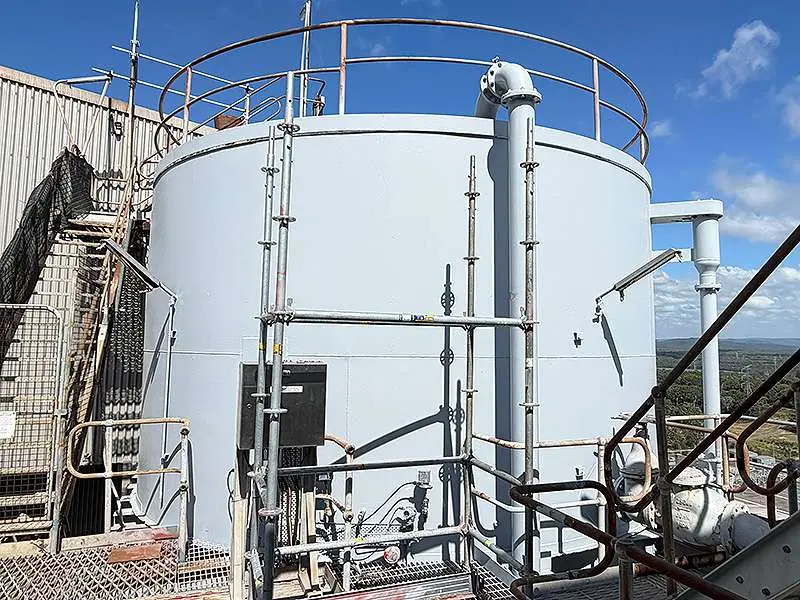

Completed domestic water tank following application of the NanoPrep
coating system and R230 TopCoat, providing a durable, long-term
corrosion and UV protection solution
Project Specification
| Item | Detail |
|---|---|
| Industry | Power Generation |
| Application | Water Tank Corrosion Repair & Protection |
| Products | NanoPrep, R230 TopCoat, Belzona 1111 |
| Location | NSW, Australia |
| Application date | Dec 2025 |
| Duration | 5 days |
| Surface preparation | High-pressure power wash (3,500 psi) + power tool clean — no blasting |
| Key requirement | No blasting, lead paint encapsulation avoided, UV-stable topcoat |
More Information?
For more information about NanoPrep products and services, fill out the form below and one of our team will be in touch within 1–2 business days.
Frequently Asked Questions
How do you protect a corroded water tank without abrasive blasting?
At a power plant in New South Wales, Rezitech protected the exterior of a severely corroded domestic water tank without abrasive blasting. The steel was prepared with a 3,500 psi pressure wash and power tool cleaning, then coated with two coats of NanoPrep and two coats of R230 TopCoat. The whole project, including structural repairs, was completed in five days.
Why avoid abrasive blasting on a tank with lead-based paint?
Abrasive blasting a tank coated in lead-based paint requires containment, encapsulation and removal of the old paint, which adds significant cost and time. On this power plant water tank, Rezitech used NanoPrep with pressure washing and power tool cleaning instead, avoiding those costly lead paint procedures while still delivering long-term corrosion protection.
How do you repair corroded steel tank supports without hot work?
On this water tank, some steel column supports had lost entire sections of steel to corrosion. Rezitech used Belzona 1111 (Super Metal) to rebuild the lost steel, repair pitting on the tank underside and cold bond reinforcement plates onto the damaged supports, restoring structural integrity without welding or other hot work. The repaired areas were then coated with NanoPrep and R230 TopCoat.
How long does it take to coat a water tank with NanoPrep?
This power plant water tank was repaired and fully coated in five days. The work covered Belzona 1111 structural repairs to the underside and supports, stripe coating of weld seams and edges by brush and roller, and two coats each of NanoPrep and R230 TopCoat applied by airless spray to the supports, sides and roof.
What topcoat protects a steel water tank from UV exposure?
On this power plant water tank, Rezitech used R230 TopCoat over NanoPrep because the tank is continuously exposed to UV radiation and needed a UV-stable, heat-tolerant finish. Two coats of R230 TopCoat were applied by airless spray. Both NanoPrep and R230 are single-pack products, which made application quick and straightforward.
